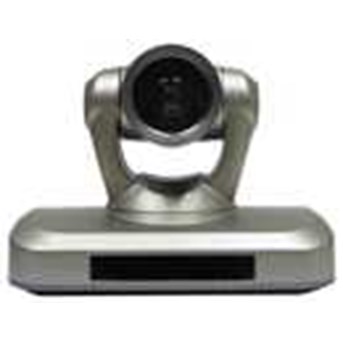

Detail HD Video Conference Camera
Product Features
Super High Definition Video - up to 1920 x 1080
1080i/ 60, 1080p/ 30, 1080p/ 25, 720p/ 60, 720/ 30 format HD video
10x Optical - Fast, accurate and stable auto focus lens
Models with wide angle ( 70 ) or normal ( 52 ) lens
Wide range, high speed and low noise pan/ tilt rotation
Digital and anolog interfaces - HD-SDI, HDMI, YPbPr
RS-232 Remote Controller - VISCA protocol
10 preset positions for pan, tilt, zoom, focus position, exposal mode and white balance
Multi-Function Handheld IR Remote Commander Unit
Tested for use with Vidyo HD-220 and HD-100 Room Systems
Product Specification
MINRRAY HD VIDEO CONFERENCE CAMERAS - SPECIFICATIONS
------------------------------------------------------------ ------------
Camera and Lens
~ Optical Format: 1/ 2.5" high definition CMOS transducer
~ Pixels, Dynamic Image: 4: 3 = 390, 000 effective pixels; Dynamic 16: 9 = 2.07 million effective pixels
~ Pixels, Static Image: 4: 3 = 2.7 million effective pixels; 16: 9 = 2.1 million effective pixels.
~ Video Signal: HD 1080p/ 30, 720p/ 60, 720p/ 30, 10800i/ 60
~ Lens Zoom: 10x optical zoom, f = 4.5 - 45.0mm, F1.8-2.2
~ Angle of View ( farness/ nearness) : 3.8 / 52 ( model VHD-A910) ; 5.4 / 70 ( model VHD-A910-WA)
~ Wide angle lens: 0.7x wide angle lens, caliber 30mm ( model VHD-A910-WA)
~ Minimum Illumination: 10LUX
~ Signal to Noise Ratio: 50dB
~ See brochure for full Camera and Lens specifications
Rotation Specifications
~ Pan Rotation: 100 degree
~ Tilt Rotation: 30 degree
~ Manual Control Speed: Pan: 0.5 - 80 / sec; Tilt: 0.5 -80 / sec
~ Preset Speed: Pan running: 80 / sec; Tilt running: 80 / sec
~ Preset Positions: 10
Input/ Output Interfaces
~ Standard Definition Compound Video Output: RCA Jack, 1Vp-p, 75 unbalance.
~ High Definition Interfaces: HDMI, HD-SDI, YpbPr
~ Power supply Interface: HEC3800 power jack
~ See brochure for full I/ O Interface specifications
Electrical Specifications
~ Power Supply Adapter: 12VDC/ 2A
~ Input voltage: 12VDC ( 10.5-14VDC)
~ Input power: 18 watts maximum
Physical Specifications
~ Dimensions: 216mm x 143mm x 140mm ( width x highness x depth)
~ Temperature: -0 to + 45 ( operating) ; -10 to + 60 ( storage)
~ Weight: 2Kg
~ See brochure for full physical specifications
